Product Modules

2015-09-11 10:13:58
azalea
2369
Last edited by Renee on 2018-01-09 17:21:33
After adding products, next is to set modules for products. Modules are like categories of stories. You can understand products at a macro level and easily sort/manage stories through modules.

1. Set modules

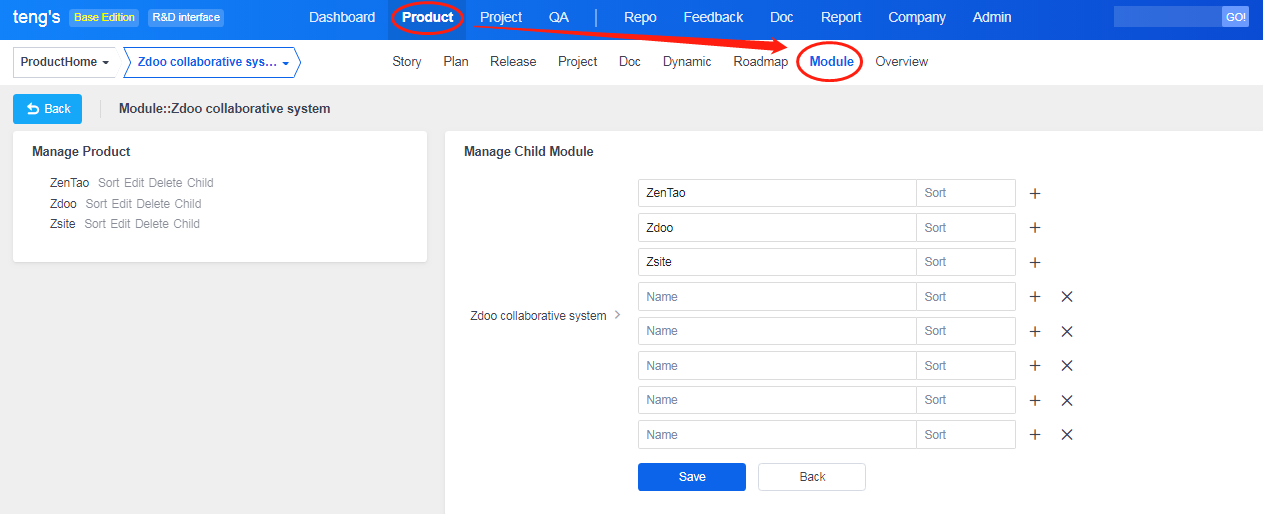

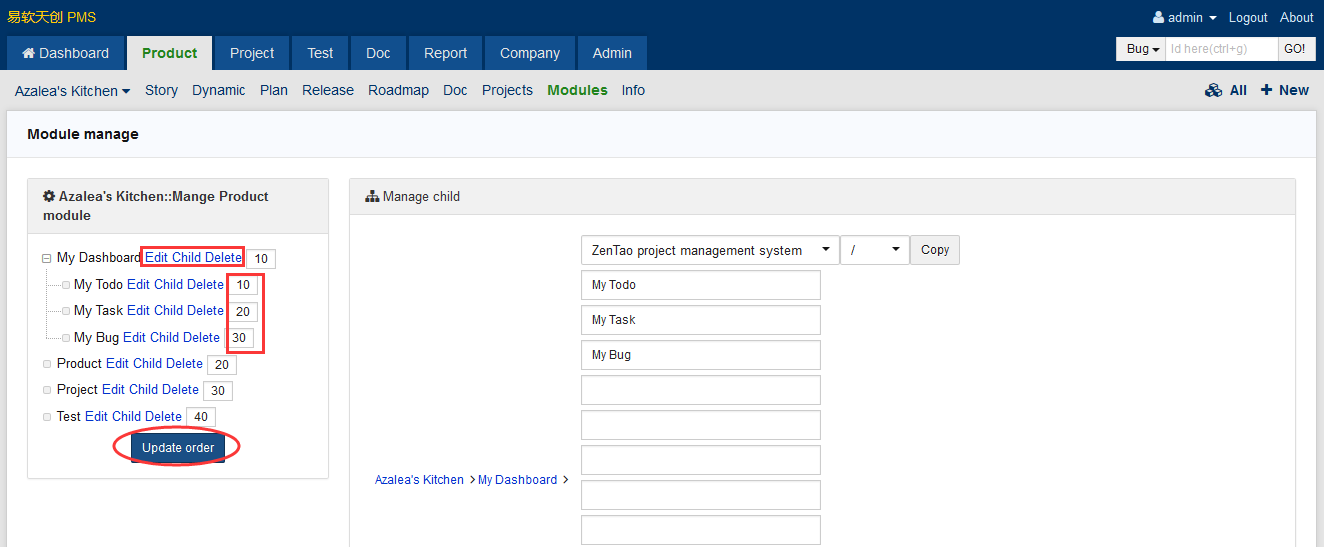

1.1 Go to Product->Module.

  • Modules is managed by levels. For example, you can select My Dashboard and then maintain its child modules.
  • Sign at the right of each module name is used to order the modules. You can adjust their orders by dragging it.
  • You can choose a module to edit and modify its parent module.

2. Synchronize modules

Modules of Product can be synchronized to Task, Bug and Case. However, there are conditions to synchronize modules with Task, and the rules are as follows,

  • Linked Stories in Project are in the Module of Product. For example, Module A has four stories and none of them are linked to any project. Therefore, Module A will not show in Product. However, it will show if any of the stories is linked to the project.
  • When creating a task, you can choose a module of Product. Once the task is created, the modules will show. If you did not link any story of the module, you can always link it when creating the task.

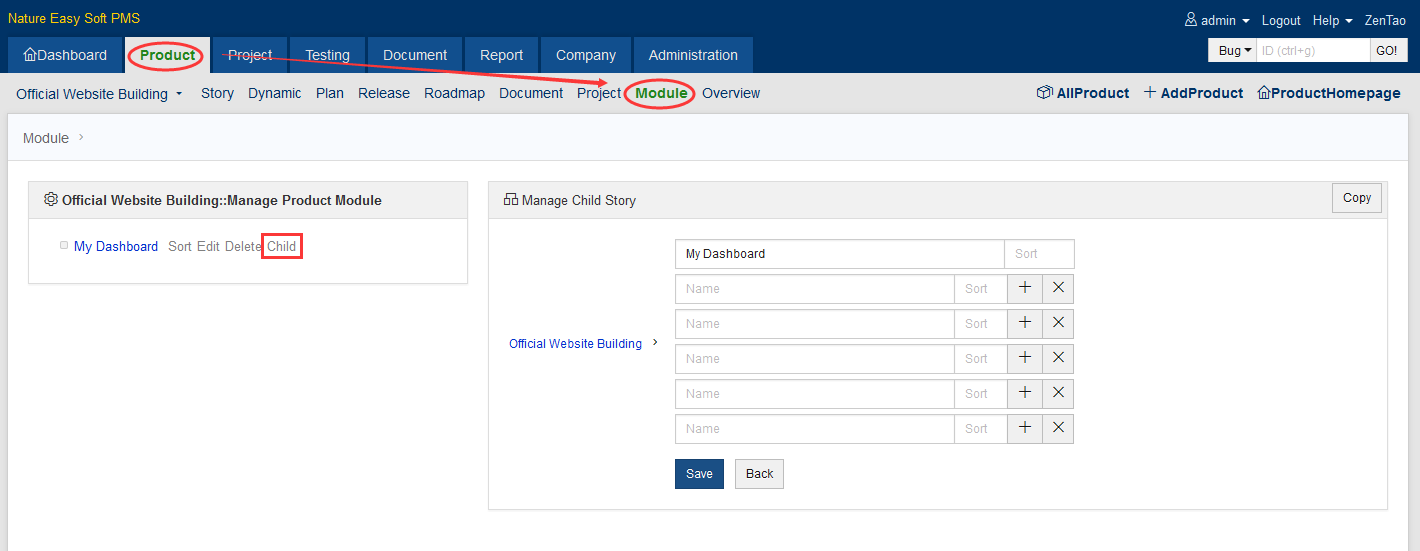

  • Modules of a project can be managed. Go to Project->Task, and click Manage Modules at the left column of the page.

SCREENSHOT



3. Show/Hide module names in Story List

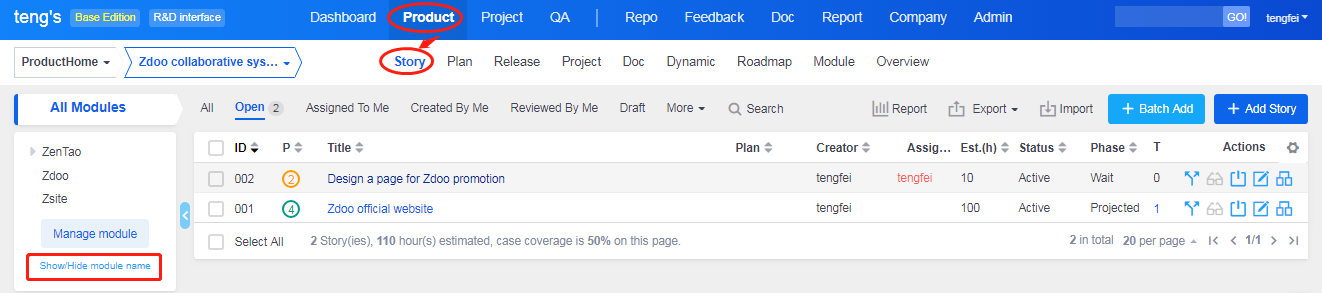

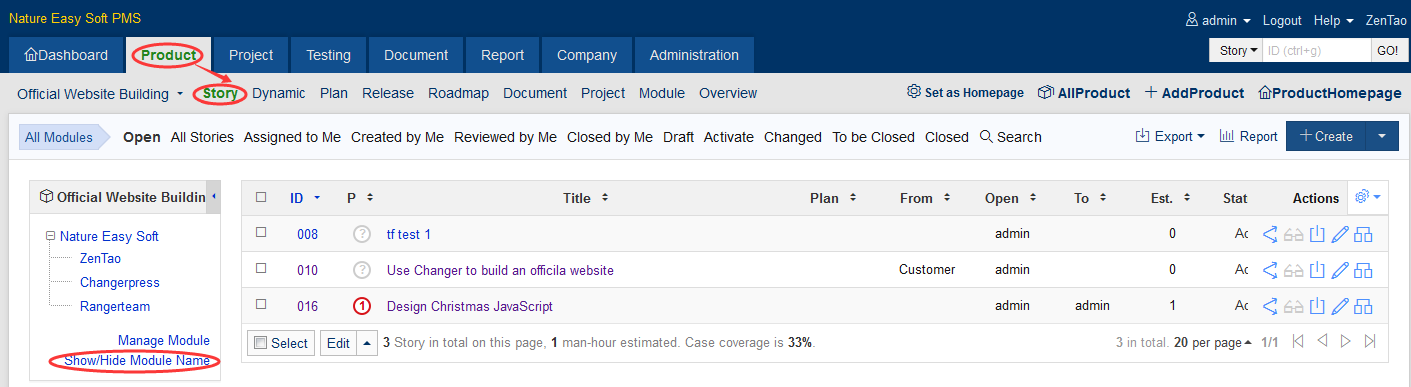

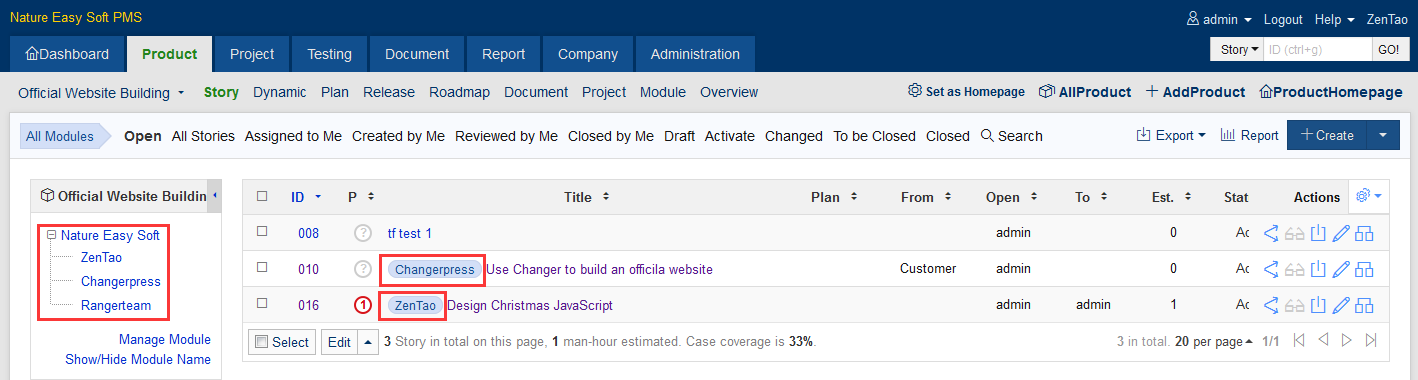

Go to Prduct->Story and you can find Show/Hide Module Name button. The default settings of Show/Hide Module Name in ZenTao is N/A which means module names will not show.

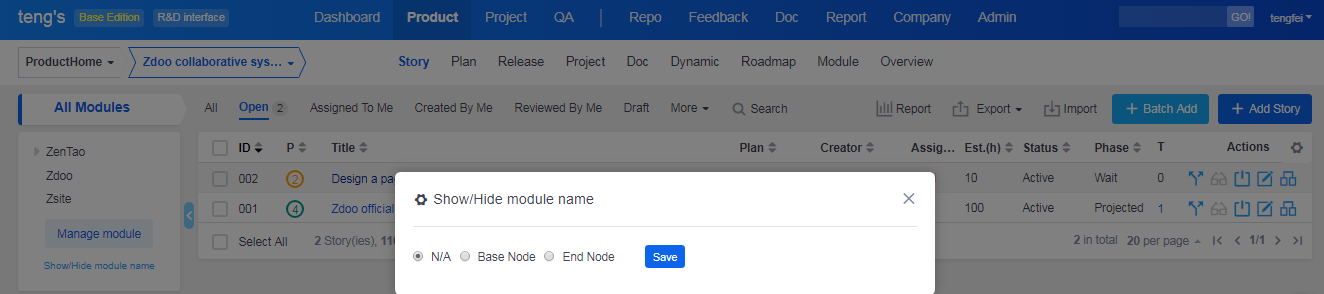

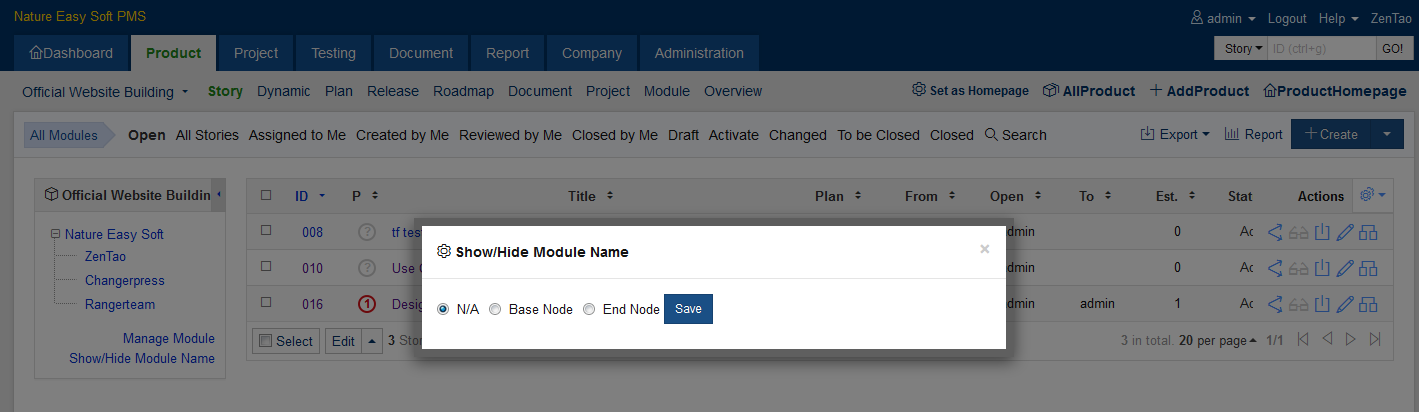

Click the Show/Hide Module Name button and you will see a pop-out window as shown below.

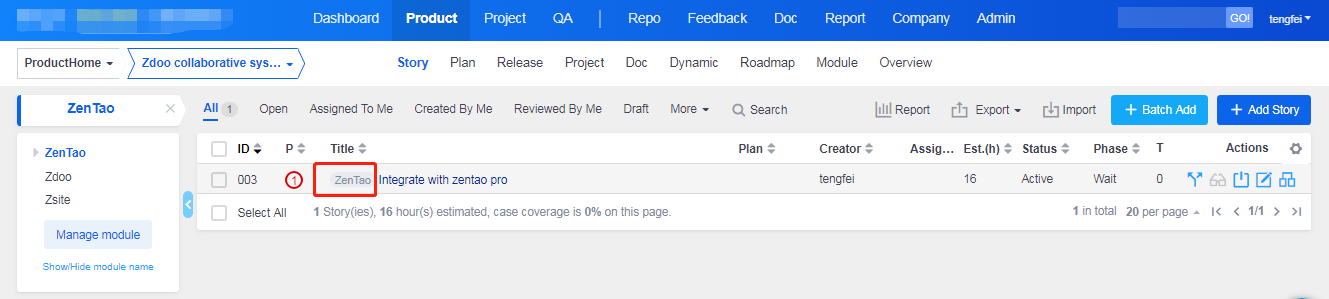

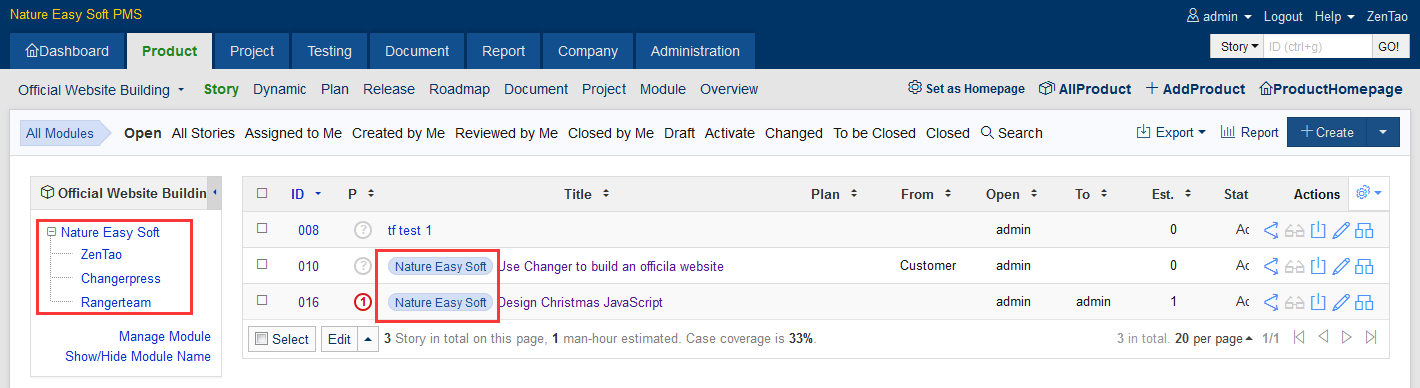

Select Base Node and click Save, you will see the name of the first level module shown in Story List.

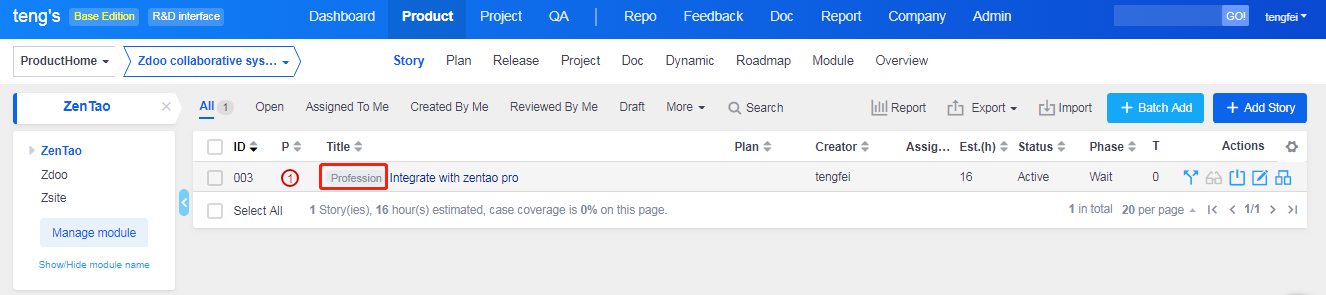

If select End Node, the name of the last level module will show.
