Check Project Progress via Lists

2015-09-11 13:30:12
Last edited by Renee on 2018-01-09 20:08:47

Actually it is not too difficult to manage a project, as long as everyone of the project team knows what is going on. Apart from holding daily standup meetings and updating the Burndown chart, project managers have to track progresses of a project through lists.

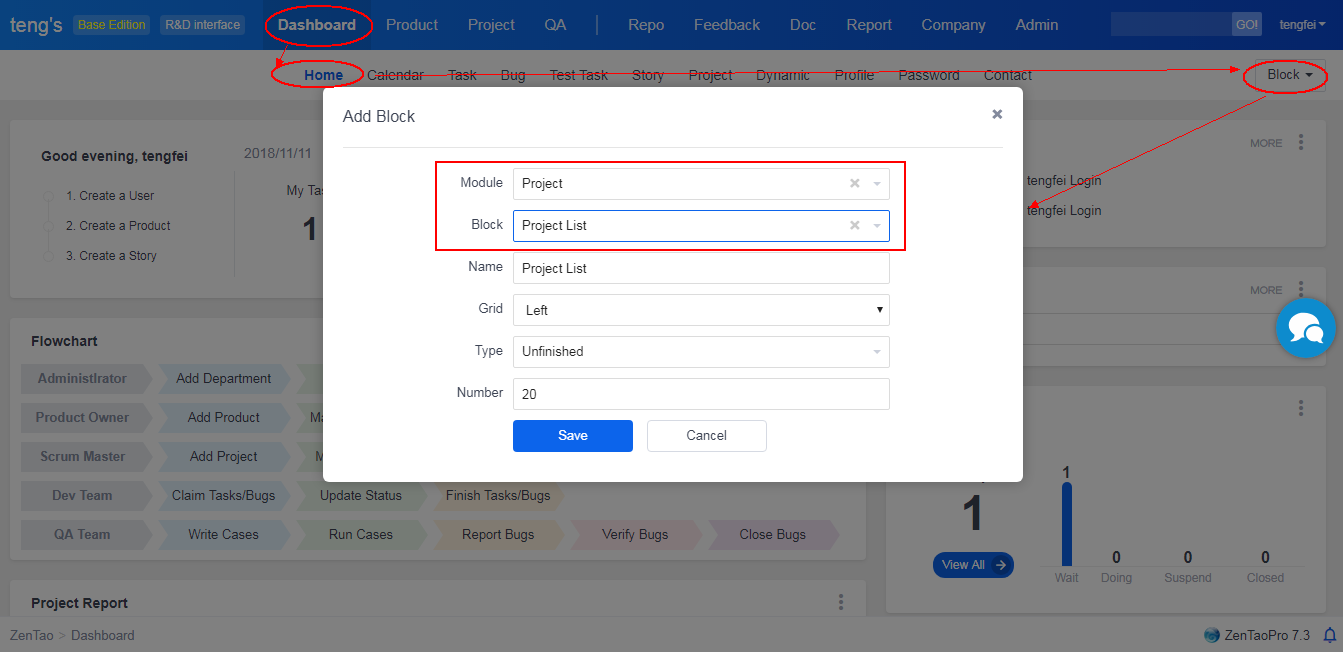

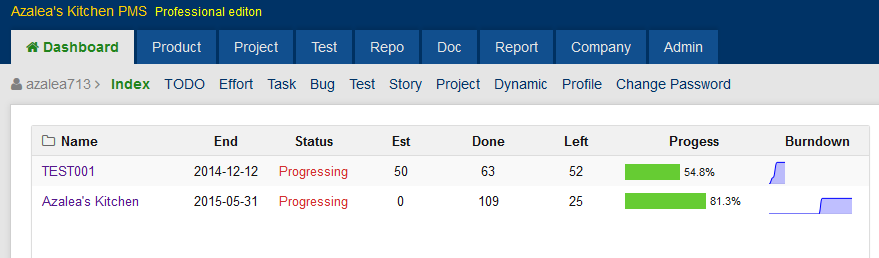

1. Project progress on Dashboard

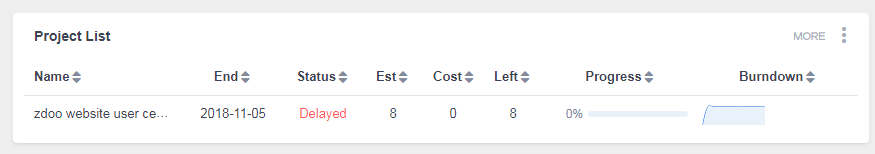

ZenTao provides an overview of Doing projects on Dashboard->Index. It is very convenient to track the progress of all the Doing projects within a company by viewing those lists. The progress is calculated according to the formula ,

Total man-hour cost/ (Total man-hour cost + Total man-hour left).

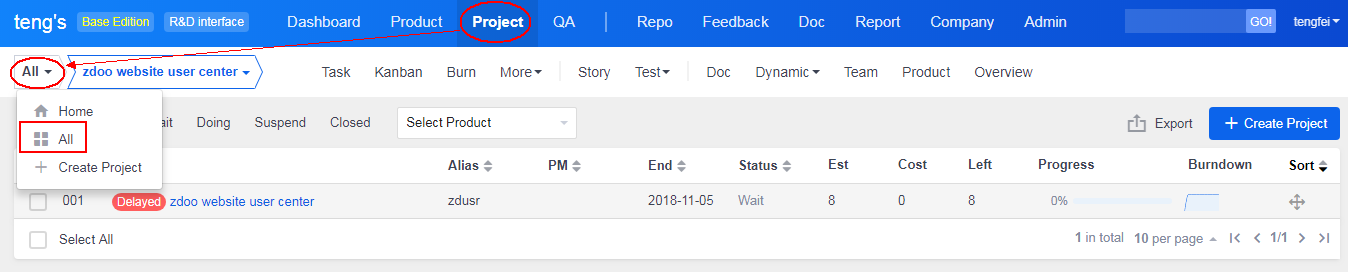

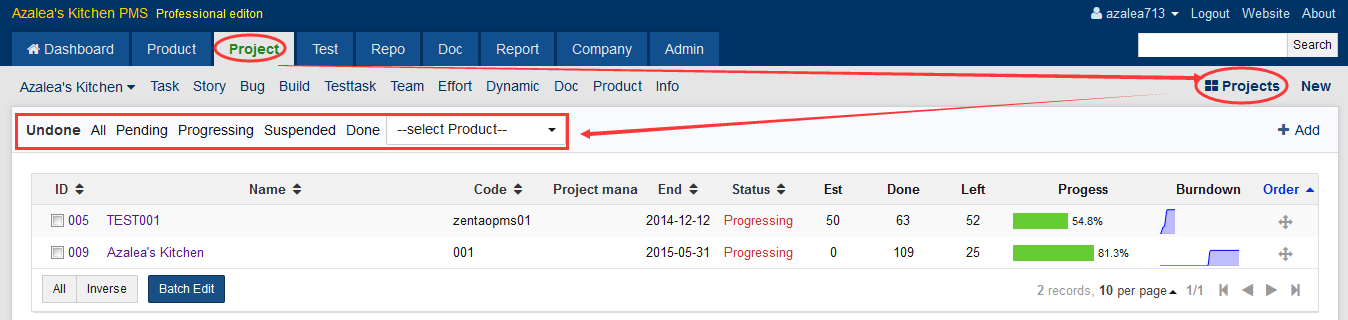

2. All Projects on Project page

Only Doing projects are listed on Index page. Click Project->All Project and you can see the progress of all projects.

3. Check the progress of a task

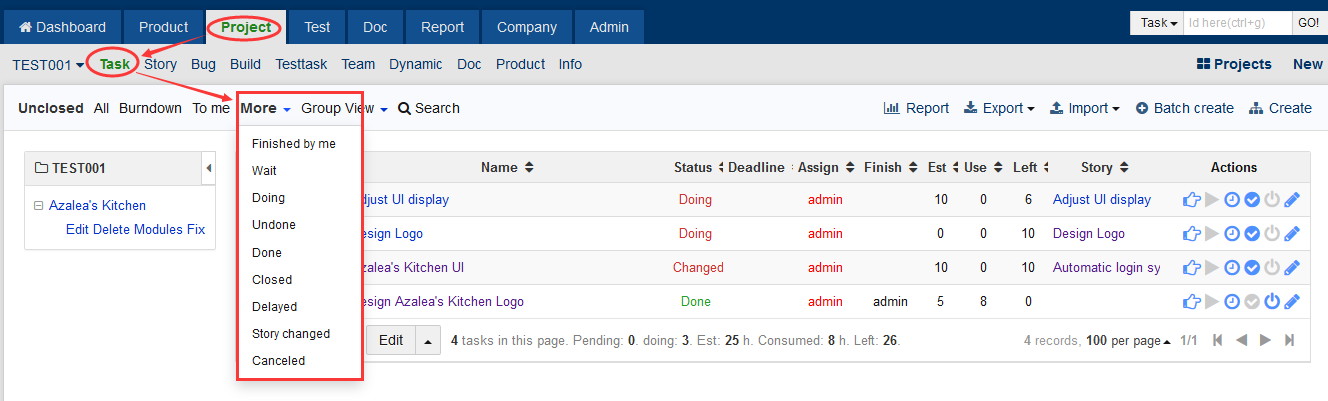

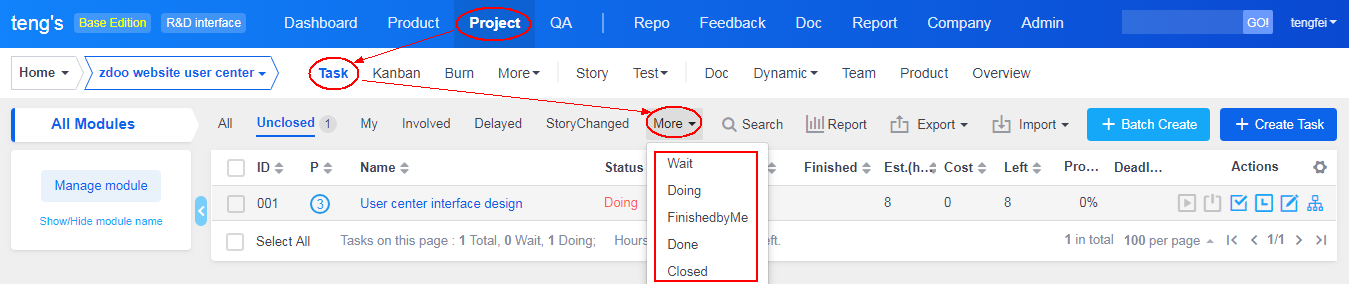

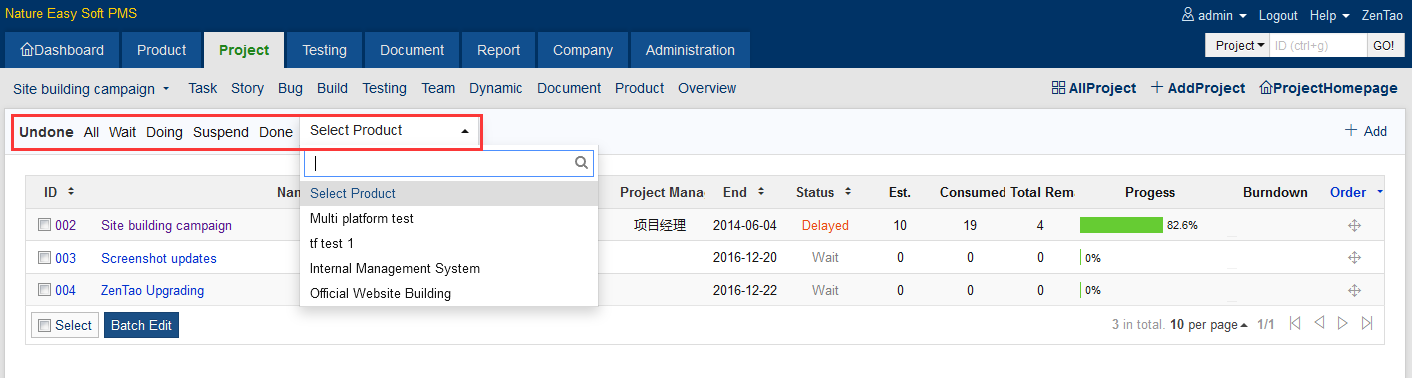

3.1 Check tasks by lables

You can click the Status of tasks to filter, such as Undone, Wait, Doing, ect. Or you can select a product from the drop-down list to display the product linked tasks.

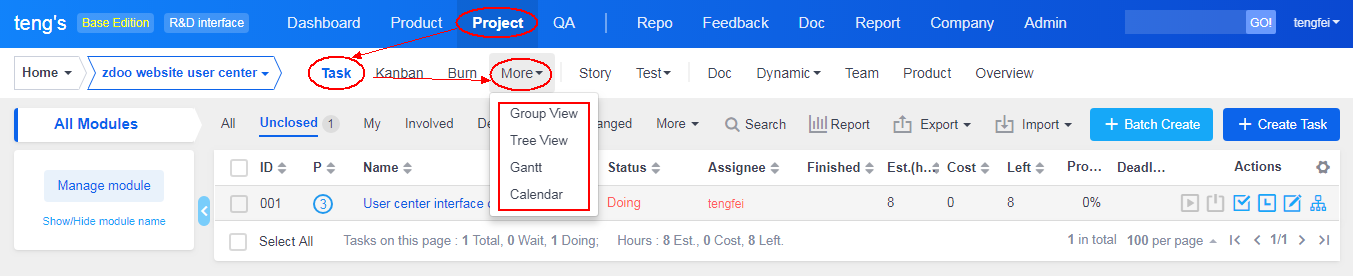

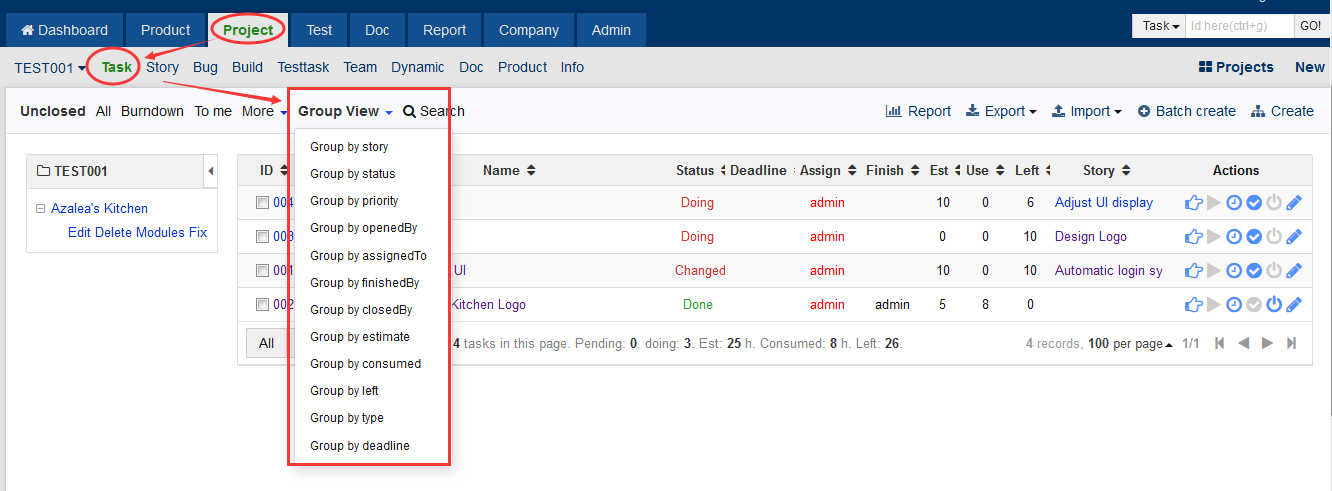

3.2 Or check task progress by groups.

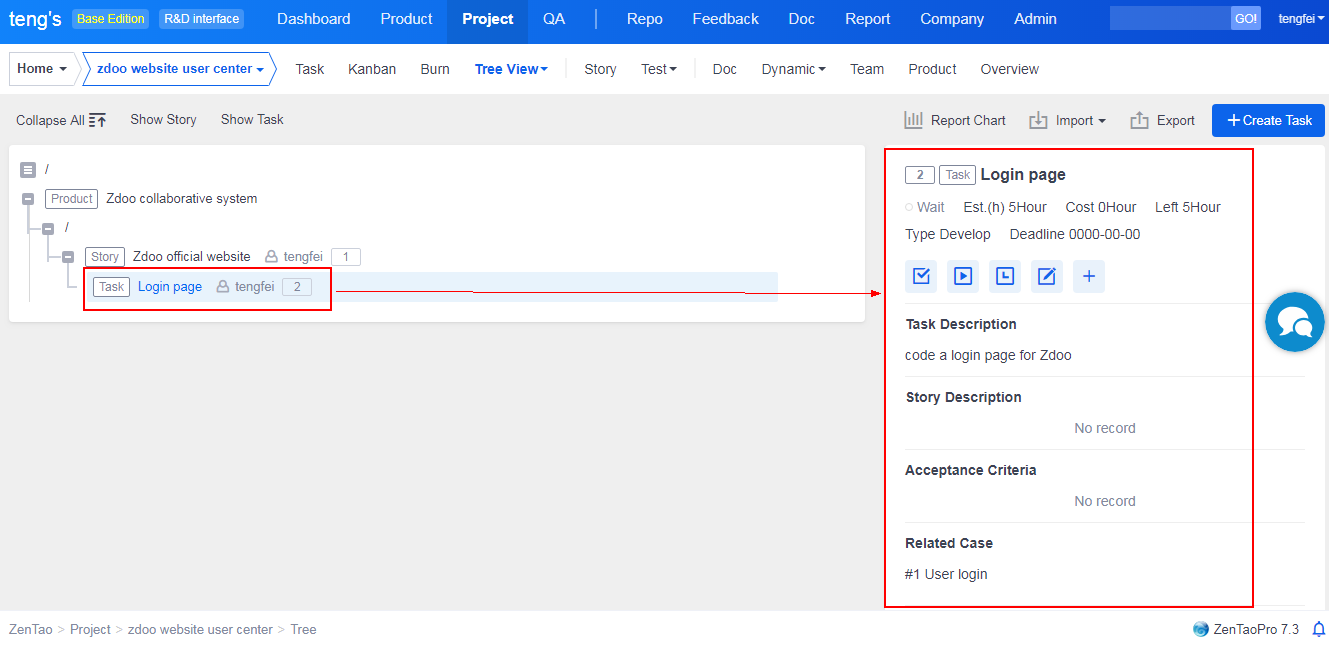

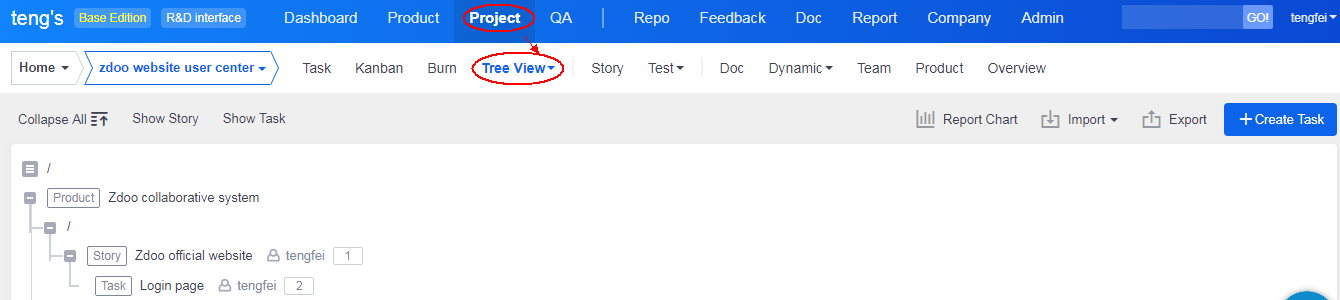

4. Check task progress via Tree diagram

Tree diagram is added in ZenTao 8.2.beta+. You can see stories linked to the project, the linkage between stories and tasks, and the task status.


Hover on task titles, and status, man-hour, and actions will display.
