Integrate Zdoo

2018-12-04 15:01:46
Renee
29
Last edited by Renee on 2018-12-10 13:12:02

ZenTao 9.2.stable has upgraded the one-click installation package for Windows, and ZenTao Runner has been upgraded to 2.0.0. Please download 64-bit or 32-bit installation package according to your operating system.


The one-click installation package for Windows also upgraded the security and disabled PHP parsing. Therefore, users have to change the configuration of ZenTao so that they can integrate ZenTao with a third-party application, such as Zsite, a CMS tool, and Zdoo, a collaborative system.



 Zdoo is an internal information management system for small and medium-sized companies. It has CRM, Project, Doc, OA, Cash, Team, Ameba, and IPS. Compared to similar applications available in the market, Zdoo is a more integrated and simplified solution.

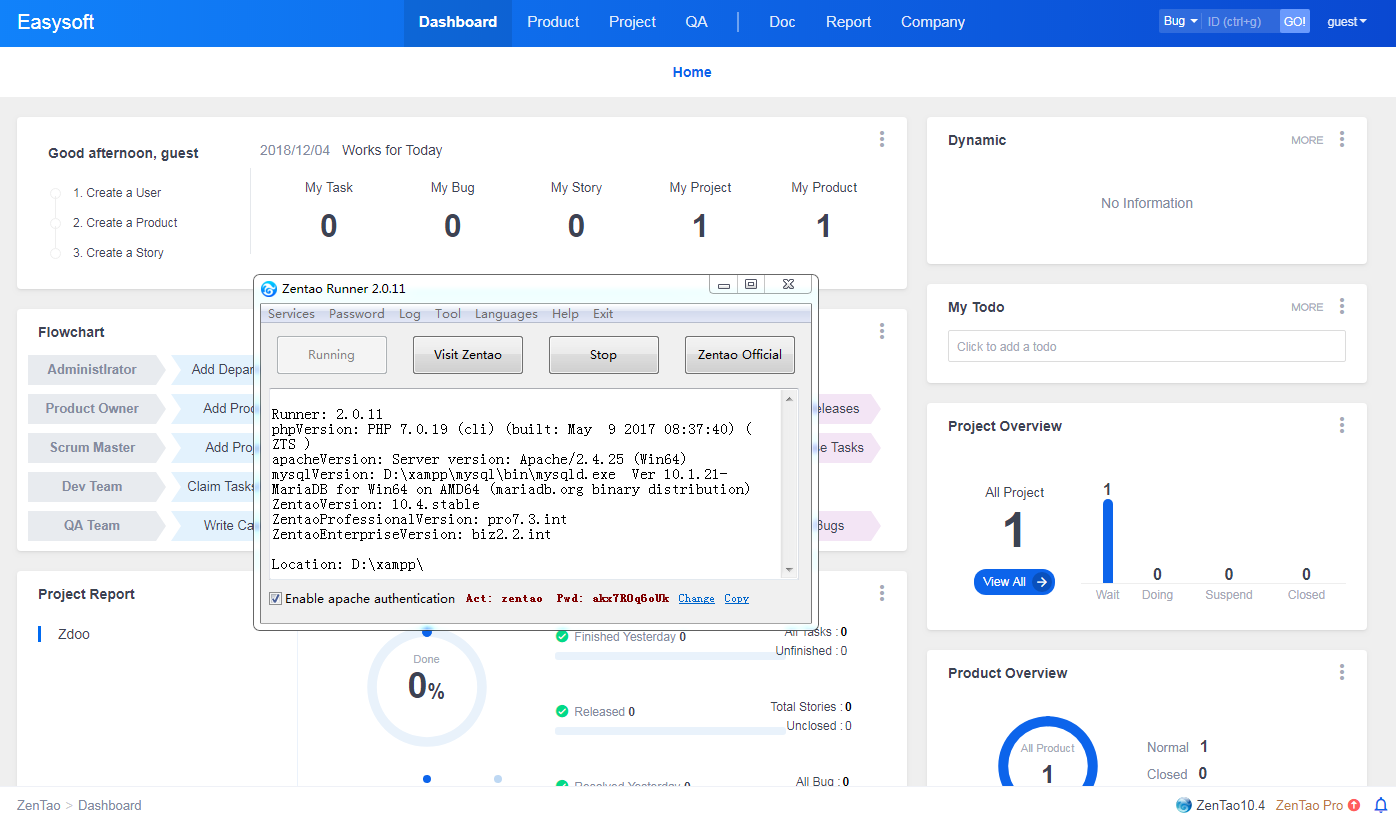

Install and run ZenTao using the one-click installation package for Windows

Download the one-click installation package for Windows and make sure that ZenTao can be accessed and visited. You can refer to the installation manual HERE.


Integrate Zdoo in ZenTao

1. Download Zdoo source code package

Visit https://www.zdoo.org/download.html and download Zdoo source code package and unzip it. Then you will have a folder named ranzhi.


2. Copy ranzhi and paste it to ZenTao xampp directory.

The ranzhi folder should be on the same level of zentao, and it should be like xampp/ranzhi.

Note: If you use a one-click installation package for Linux, ranzhi should be put in /opt/zbox/app/.


3. Add the code below to xampp/runner/res/apache/conf/httpd.conf in zentao directory.

Copy, paste, and save. Note: Open the file with editors such as Notepad++.


# setting for ranzhi.
Alias /ranzhi "%APP_LOCATION%ranzhi/www/"
<Directory "%APP_LOCATION%ranzhi/www">
  Order deny,allow
  Allow from all
  AllowOverride All
  Require all granted
     <Files "index.php">
       SetHandler application/x-httpd-php
     </Files>
     <Files "xuanxuan.php">
       SetHandler application/x-httpd-php
     </Files>
     <Files "upgradexuanxuan.php">
       SetHandler application/x-httpd-php
     </Files>
</Directory>

<DirectoryMatch "%APP_LOCATION%ranzhi/www/team/">
  <Files "index.php">
    SetHandler application/x-httpd-php
  </Files>
</DirectoryMatch>
<DirectoryMatch "%APP_LOCATION%ranzhi/www/proj/">
  <Files "index.php">
    SetHandler application/x-httpd-php
  </Files>
</DirectoryMatch>
<DirectoryMatch "%APP_LOCATION%ranzhi/www/oa/">
  <Files "index.php">
    SetHandler application/x-httpd-php
  </Files>
</DirectoryMatch>
<DirectoryMatch "%APP_LOCATION%ranzhi/www/doc/">
  <Files "index.php">
    SetHandler application/x-httpd-php
  </Files>
</DirectoryMatch>
<DirectoryMatch "%APP_LOCATION%ranzhi/www/crm/">
  <Files "index.php">
    SetHandler application/x-httpd-php
  </Files>
</DirectoryMatch>
<DirectoryMatch "%APP_LOCATION%ranzhi/www/psi/">
  <Files "index.php">
    SetHandler application/x-httpd-php
  </Files>
</DirectoryMatch>
<DirectoryMatch "%APP_LOCATION%ranzhi/www/hr/">
  <Files "index.php">
    SetHandler application/x-httpd-php
  </Files>
</DirectoryMatch>
<DirectoryMatch "%APP_LOCATION%ranzhi/www/flow/">
  <Files "index.php">
    SetHandler application/x-httpd-php
  </Files>
</DirectoryMatch>
<DirectoryMatch "%APP_LOCATION%ranzhi/www/cash/">
  <Files "index.php">
    SetHandler application/x-httpd-php
  </Files>
</DirectoryMatch>
<DirectoryMatch "%APP_LOCATION%ranzhi/www/sys/">
  <Files "index.php">
    SetHandler application/x-httpd-php
  </Files>
  <Files "upgrade.php">
    SetHandler application/x-httpd-php
  </Files>
  <Files "install.php">
    SetHandler application/x-httpd-php
  </Files>
</DirectoryMatch>

<DirectoryMatch "%APP_LOCATION%ranzhi/www/.+/.*">
  <FilesMatch ".+\.ph(p[3457]?|t|tml)$">
    SetHandler application/x-httpd-php
  </FilesMatch>
</DirectoryMatch>


For the one-click installation package for Linux, the file is  /opt/zbox/etc/apache/httpd.conf

# setting for ranzhi.
Alias /ranzhi "/opt/zbox/app/ranzhi/www/"
<Directory "/opt/zbox/app/ranzhi/www">
  Order deny,allow
  Allow from all
  AllowOverride All
  Require all granted
     <Files "index.php">
       SetHandler application/x-httpd-php
     </Files>
     <Files "xuanxuan.php">
       SetHandler application/x-httpd-php
     </Files>
     <Files "upgradexuanxuan.php">
       SetHandler application/x-httpd-php
     </Files>
</Directory>

<DirectoryMatch "/opt/zbox/app/ranzhi/www/team/">
  <Files "index.php">
    SetHandler application/x-httpd-php
  </Files>
</DirectoryMatch>
<DirectoryMatch "/opt/zbox/app/ranzhi/www/proj/">
  <Files "index.php">
    SetHandler application/x-httpd-php
  </Files>
</DirectoryMatch>
<DirectoryMatch "/opt/zbox/app/ranzhi/www/oa/">
  <Files "index.php">
    SetHandler application/x-httpd-php
  </Files>
</DirectoryMatch>
<DirectoryMatch "/opt/zbox/app/ranzhi/www/doc/">
  <Files "index.php">
    SetHandler application/x-httpd-php
  </Files>
</DirectoryMatch>
<DirectoryMatch "/opt/zbox/app/ranzhi/www/crm/">
  <Files "index.php">
    SetHandler application/x-httpd-php
  </Files>
</DirectoryMatch>
<DirectoryMatch "/opt/zbox/app/ranzhi/www/psi/">
  <Files "index.php">
    SetHandler application/x-httpd-php
  </Files>
</DirectoryMatch>
<DirectoryMatch "/opt/zbox/app/ranzhi/www/hr/">
  <Files "index.php">
    SetHandler application/x-httpd-php
  </Files>
</DirectoryMatch>
<DirectoryMatch "/opt/zbox/app/ranzhi/www/flow/">
  <Files "index.php">
    SetHandler application/x-httpd-php
  </Files>
</DirectoryMatch>
<DirectoryMatch "/opt/zbox/app/ranzhi/www/cash/">
  <Files "index.php">
    SetHandler application/x-httpd-php
  </Files>
</DirectoryMatch>
<DirectoryMatch "/opt/zbox/app/ranzhi/www/sys/">
  <Files "index.php">
    SetHandler application/x-httpd-php
  </Files>
  <Files "upgrade.php">
    SetHandler application/x-httpd-php
  </Files>
  <Files "install.php">
    SetHandler application/x-httpd-php
  </Files>
</DirectoryMatch>

<DirectoryMatch "/opt/zbox/app/ranzhi/www/.+/.*">
  <FilesMatch ".+\.ph(p[3457]?|t|tml)$">
    SetHandler application/x-httpd-php
  </FilesMatch>
</DirectoryMatch>


4. Restart ZenTao via Runner.

The configuration will be valid ONLY after you restart the service.


5. Install Zdoo.

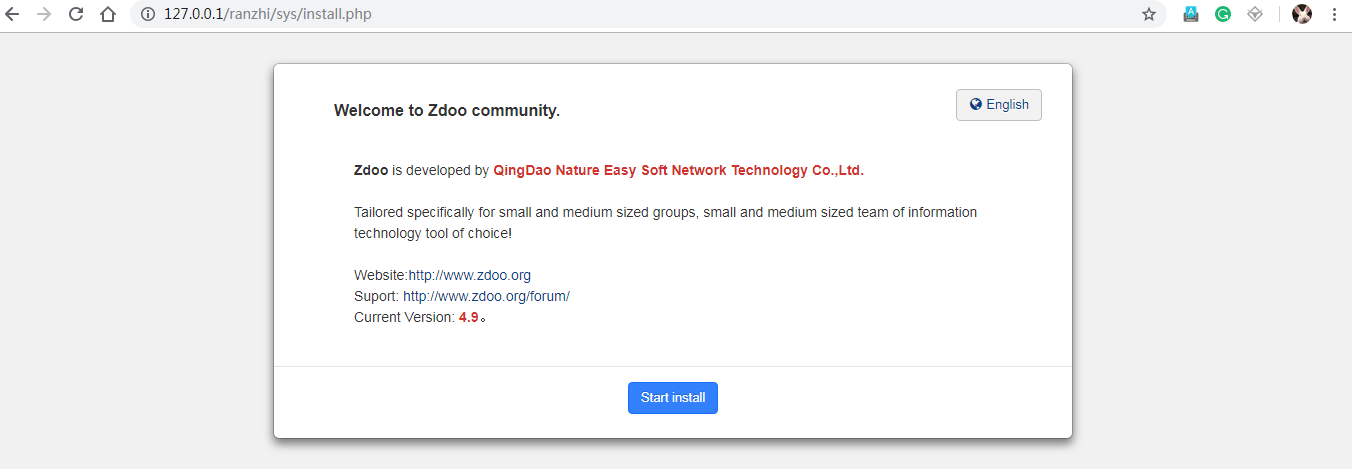

Visit http://127.0.0.1/ranzhi in your browser, and the installation will start automatically. Follow the instructions and it will do. It is the same as installing Zdoo via source code package. Refer to HERE for instructions.

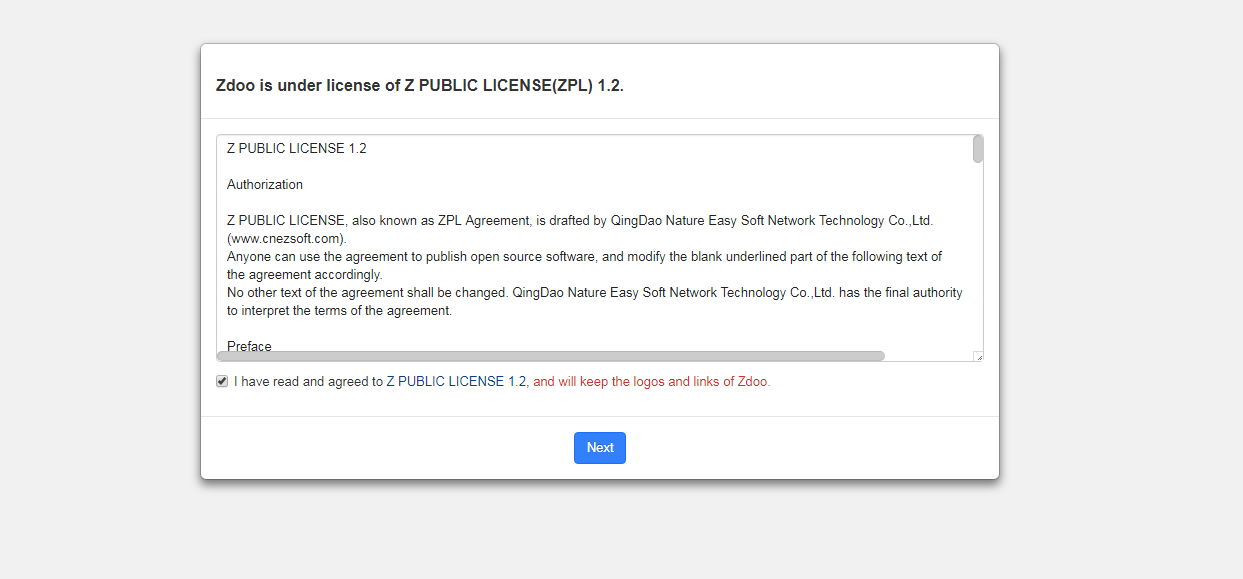

Follow the installation wizard and click Next.

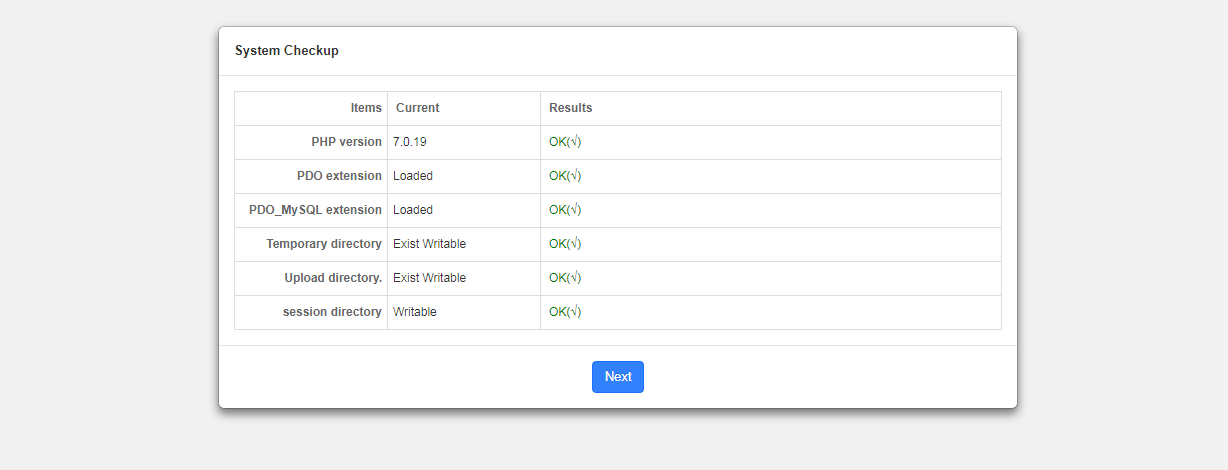

Go through the checkup.

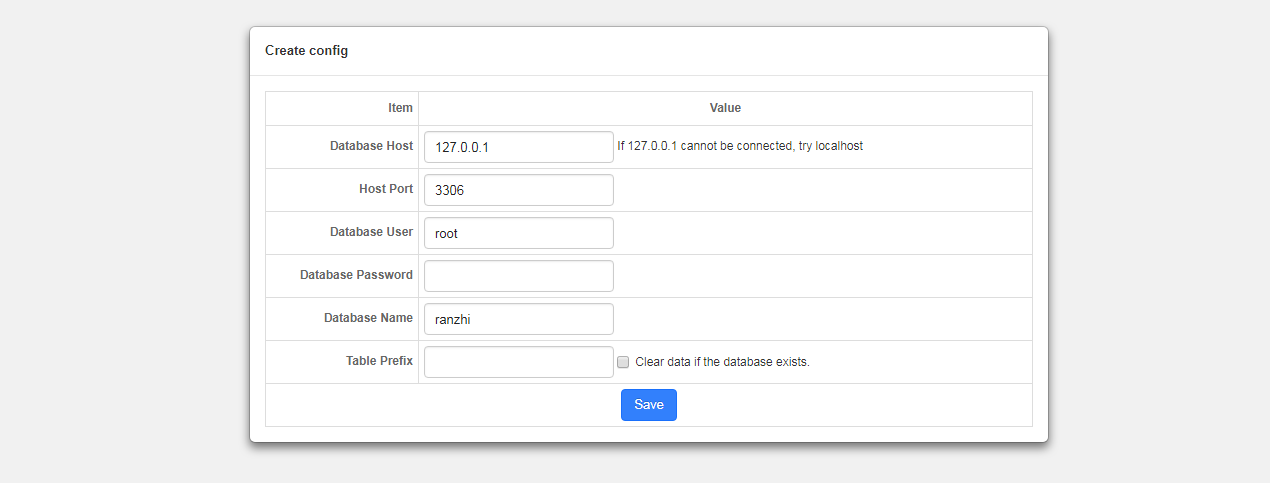

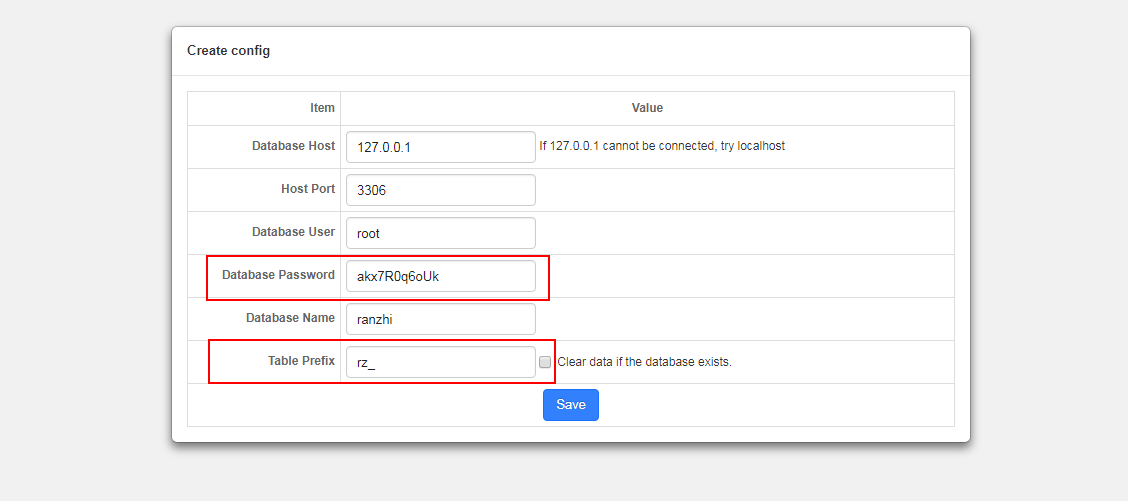

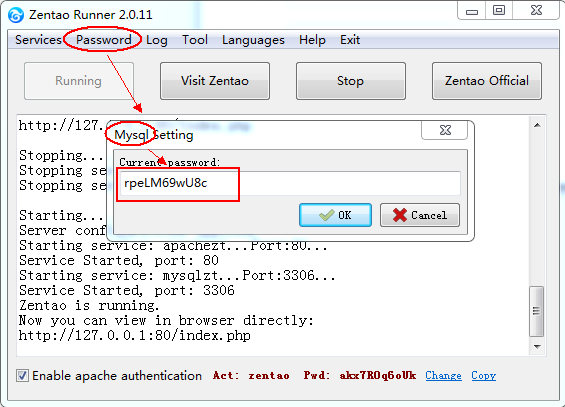

Configure it. Use the database password set in ZenTao Runner (Runner->Password)and set a table prefix for Zdoo.

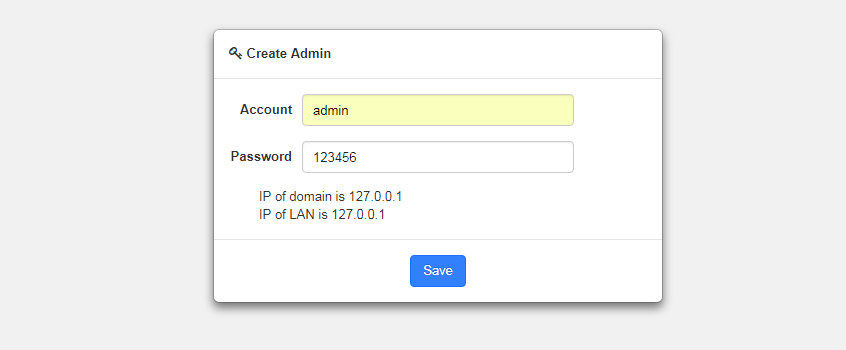

Set the admin username and password.


Then you are done with Zdoo installation.


Note


  • You can refer to the configuration above to install other third-party applications.
  • Make sure that ZenTao one-click installation for Windows is working and all the service is normal.
  • Restart the service via ZenTao Runner after you change the configuration and save it. Stop the service and restart it.
  • When you set up the database, the password should be the one in Runner->Password->Database password in the one-click installation for Windows.
  • For Linux one-click installation, save the configuration code to /opt/zbox/etc/apache/httpd.conf , and then restart the service.
